Simulación 4.0 was fully developed in VBA (Visual Basic for Applications) and it is compatible with Excel 97 and above. It has been created in order to bring a flexible simulation tool, easy to be used.



Features:



• 34 random number functions within the following distributions:



Continuous



Arcsine

Fisher

Normal

Uniform

Beta

Gamma

Parabolic

Weibull

Cauchi

Gamma Inverted

Pareto

Chi Square

Gumbel

Pearson’s type 6

Cosine

Laplace

Power

Double Log.

Logarithmic

Rayleigh

Exponential

Logistic

Students T

Erlang

LogNormal

Triangular



Discrete



Bernoulli

Binomial Negative

Hypergeometric

Poisson

Binomial

Geometric

Pascal

Uniform (D)



(As long as the simulation is not running, these functions return the expected value)



Simulation with the Monte Carlo method, between 1 - 65,000 iterations.



Integrated Menu and Toolbar.



Up to 150 Inputs and 20 Outputs.



Easy Block of inputs in order to run partial simulations.



• Definition of correlations between inputs.



• Determination of  one approximate distribution for a known data series.



Quick and easy install and uninstall.



Simulation results presented in a new Excel Workbook with the following sheets:



Data

This sheet presents the results for all of the variables in the n iterations.



Summary

This sheet presents the main statistics for all the variables.



Statistics

Contents main statistics, histogram and frequency chart for the selected variable.



Sensitivity

This sheet contents correlation coefficient between one selected variable and the rest, regression line parameters between two selected variables, and “Tornado Graph”.



Installation:



The first time Simulación 4.0 is opened (enabling macros), with a simple click in the install command, the tool is ready to be used in any existent workbook or in a new one, without opening the file again.



Use:

Toolbar



Simulación 4.0 creates a toolbar to access all the developed features.

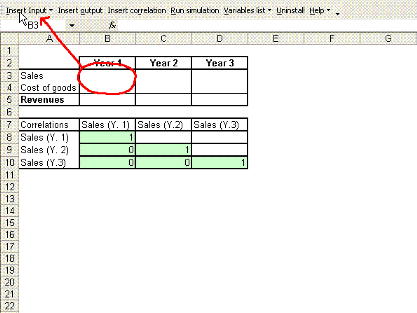

Insert input

It replaces the content of the cell with the desired random number generator function.



Note: The variable name must be quoted “”



Includes the "find distribution" sub-menu to  determine an approximate distribution for a known data series.



Insert correlation

This button adds to the active cell a function “Simula_correlation(Name1,Name2,Correlation coef.)” whose results is always the correlation coeficient.



Insert output

This button adds to the active cell a function “Simula_output(Name)” whose results is always 0 (therefore it doesn’t affect the formula result)



Run Simulation

This command starts the simulation process after the number of iterations is selected.



(At least one output and one input must be defined)



List variables

This menu can be used to go through all the variables and correlations. It also permits to block the desired inputs.



Menu



Activate toolbar

Re-creates the toolbar to discard any custom change and make it visible.



Menu and toolbar



Uninstall

Just a click is enough to uninstall this tool. Simulación 4.0 can be installed again by re-opening the original file or through the add-in menu.



Help

This document….



About…

Development:José Ricardo Varela. jvarela@cema.edu.ar
